Ticket #2406 (closed feature: obsolete)

Opened 15 years ago

Last modified 13 years ago

remove-orientation-sub-hud

Reported by: dido Owned by: dido
Priority: major Milestone:
Component: SOPHIE_END_PRODUCT Version: 2.0
Keywords: Cc: dido
Category: END_PROD Effort:
Importance: 60 Ticket_group:
Estimated Number of Hours: 0 Add Hours to Ticket: 0
Billable?: yes Total Hours: 0
Analysis_owners: dido Design_owners: dido
Imp._owners: dido Test_owners:
Analysis_reviewers: deyan Changelog: Changelog
Design_reviewers: pap Imp._reviewers: todor, pap
Test_reviewers: Analysis_score: 4
Design_score: 3.5 Imp._score: 3
Test_score: 0

Description (last modified by dido) (diff)

The goal of this task is to optimize the usage of orientation functionality

  • In order to reduce users clicks for rotating by pointing the rotation pivot - remove the orientation sub hud and add this functionality to properties hud.
  • Use the logic from rotation sub hud instead of the one that exist in properties hud.
  • In order to customize the control for rotation pivot, replace check-boxes that are currently used with LogicR3TougleButtons, and rewrite the logic.

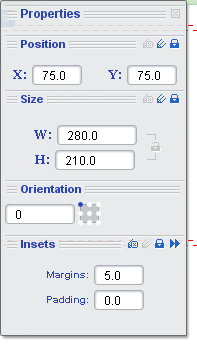

  • The end result should look as close as possible to the attached image

Attachments


Change History

comment:1 Changed 15 years ago by dido

  • Owner set to dido
  • Status changed from new to s1a_analysis_started
  • Description modified (diff)

Changed 15 years ago by dido

comment:2 Changed 15 years ago by dido

  • Cc dido added; 60 removed
  • Importance set to 60
  • Status changed from s1a_analysis_started to s1b_analysis_finished
  • Analysis_owners set to dido

comment:3 Changed 15 years ago by dido

  • Description modified (diff)

comment:4 Changed 15 years ago by dido

  • Summary changed from remove orientation sub hud to remove-orientation-sub-hud

comment:5 Changed 15 years ago by deyan

  • Status changed from s1b_analysis_finished to s1c_analysis_ok
  • Analysis_reviewers set to deyan
  • Analysis_score changed from 0 to 4

comment:6 Changed 15 years ago by dido

  • Status changed from s1c_analysis_ok to s2a_design_started

comment:7 Changed 15 years ago by dido

  • Design_owners set to dido
  • Status changed from s2a_design_started to s2b_design_finished
  • All toggle buttons that are used to set the rotation position are now part of RotationPivotButtonsContainer sub class inside ProppertiesHud.
  • New enumeration EventIds is added.
  • Inside the HudLogic
    • New handler is added ON_ROTATION_PIVOT_SET
    • ON_ANGLE_SUBMIT is changed to work as it was working in orientation sub hud. In order to do so there are few support methods added to the hud.
      • getFrameView - Gets the frame view which rotation properties should be changed by this
      • getHud - Helper method to get the related PropertiesHud
      • getModel - Helper method to get the frame model they are working on, for all elements in this hud.
    • Also few new properties are added
      • model - Frame this Hud operates on.
      • rotationPosition - The position in the frame of its rotation center.
      • rotationCenter - The rotation center of the frame this hud is working on.
    • From RotationAngle sub class the method getHud is removed
  • OrientationSubHud is removed and the MainAppHalosModule is edited in order to not use the class
  • FrameRotationHaloButton now get his rotation pivot position form PropertiesHud instead of OrientationSubHud
  • There were some commented code inside this classes, now it's removed
  • new assets are added inside org.sophie2.main.app.halos/src/main/resources/distrib/icons/propertiesHud/
  • Inside the implementation - new container will be added, that contains RotationPivotButtonsContainer and RotationAngle. They will also swap places, and the gaps between them will be changed.

Note: Forgot to add comment when created the branch

Follow the the link to the design.

comment:8 Changed 15 years ago by pap

  • Status changed from s2b_design_finished to s2c_design_ok
  • Design_score changed from 0 to 3.5
  • Design_reviewers set to pap
  • I see improvements in your skills :))
  • ON_ROTATION_PIVOT_SET is not a nice name for an event. This is the name of an event handler. SET_ROTATION_PIVOT is better.
  • The new getHud method has improper JavaDoc. Also I think we don't need it as it only wraps one method.
  • I don't think that we really need the model property. Also the getModel method should return something like "hud.context().get(0).model().get()" in order to keep consistency of the model of the hud.
  • Also it needs not be a FrameH. ElementH is sufficient I think.
  • I think that the map between positions and buttons in RotationPivotButtonsContainer.swingComponent can be ommited if you override the computeSelected method of the concrete buttons. Actually you have overriden that method.
  • This makes the separate properties for all the buttons obsolete.
  • In the ON_ANGLE_SUBMIT use the getModel method of the PropertiesHud instead of getting the model this way.

comment:9 Changed 15 years ago by dido

  • Status changed from s2c_design_ok to s3a_implementation_started

comment:10 Changed 15 years ago by dido

  • Status changed from s3a_implementation_started to s3b_implementation_finished
  • Imp._owners set to dido

All issues are fixed here.

comment:11 Changed 15 years ago by pap

  • Status changed from s3b_implementation_finished to s3c_implementation_ok
  • Imp._score changed from 0 to 3
  • Imp._reviewers set to todor, pap
  • Commited in [9100]
  • You had incorrect tooltips in the buttons for different positions. This is quite strange for someone in the experience team.
  • Don't use the static method BaseVisualElement.findParentElement(locating, class) when inside a visual element.

comment:12 Changed 13 years ago by meddle

  • Status changed from s3c_implementation_ok to closed
  • Resolution set to obsolete

Closing all the tickets before M Y1
